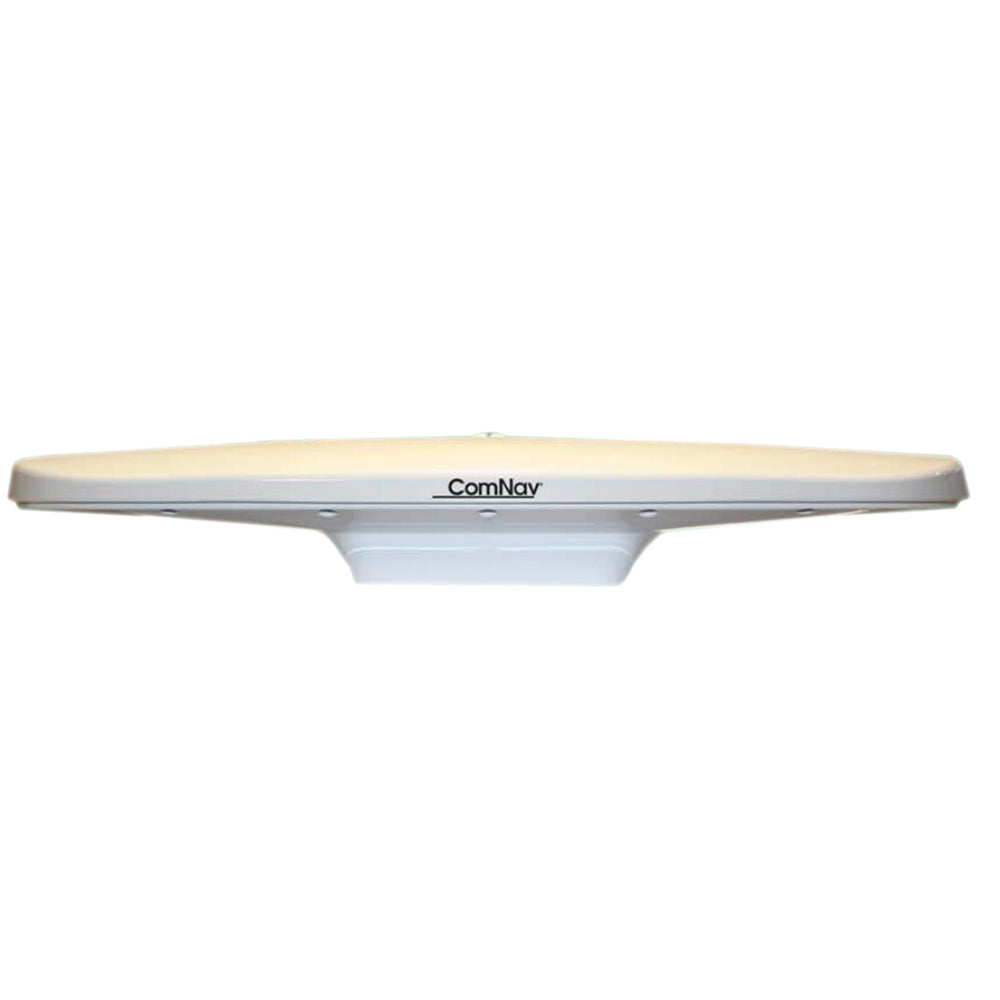

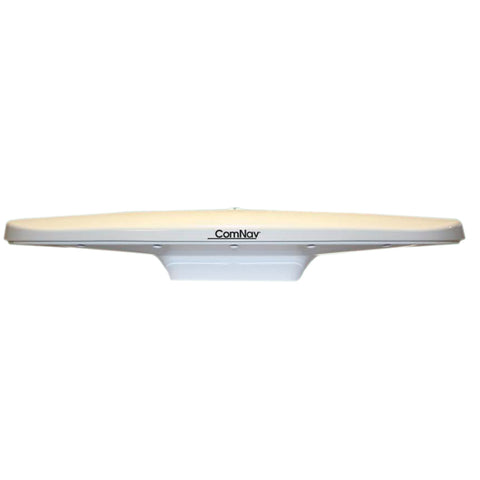

ComNav G1 Satellite Compass - NMEA 2000 w/6M Cable [11220008]
for product information
2 Great reasons to buy from us:
G1 Satellite Compass - NMEA 2000 with 6M Cable
Accurate Heading, Position & Rate of Turn
Features:
- Supports both GPS and GLONASS satellites for complete redundancy
- Heading accuracy < 0.25° rms
- Position accuracy < 0.3m 95% confidence (DGPS)
- An integrated 9 Axis Inertial Measurement Core (IMC technology) provides enhanced roll, tilt and heading stability even during momentary loss of satellite signals
- G3 color display system (optional)
- Engineered enhancements to exceed sealed IP67 rating
- Extended 2 year warranty
- NMEA 2000® interface
- Heave, Pitch, Roll and Rate of Turn as standard output
- Heading updates 1 to 20 Hz
- BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
- Fully compatible with on board NMEA 2000® RADAR, ECDIS, AIS, Cameras, SONAR, PC and Autopilots
- Compact integrated surface mounting (Pole mount optional)
IMO Compliant, Wheelmark and USCG approved
- Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
- 15 meter serial cable standard (30 meter optional)
- 6 meter NMEA 2000® Cable (optional)
- CE certified for EMI and RFI immunity
- Worldwide service
Specifications:
- Output Type: NMEA 2000
- Mounting Style: Surface
- Load Equivalence # (LEN): 5
- Backlight: No
Owner's Manual (pdf)
Brochure (pdf)
G1 Satellite Compass - NMEA 2000 with 6M Cable
Accurate Heading, Position & Rate of Turn
Features:
- Supports both GPS and GLONASS satellites for complete redundancy
- Heading accuracy < 0.25° rms
- Position accuracy < 0.3m 95% confidence (DGPS)
- An integrated 9 Axis Inertial Measurement Core (IMC technology) provides enhanced roll, tilt and heading stability even during momentary loss of satellite signals
- G3 color display system (optional)
- Engineered enhancements to exceed sealed IP67 rating
- Extended 2 year warranty
- NMEA 2000® interface
- Heave, Pitch, Roll and Rate of Turn as standard output
- Heading updates 1 to 20 Hz
- BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
- Fully compatible with on board NMEA 2000® RADAR, ECDIS, AIS, Cameras, SONAR, PC and Autopilots
- Compact integrated surface mounting (Pole mount optional)
IMO Compliant, Wheelmark and USCG approved
- Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
- 15 meter serial cable standard (30 meter optional)
- 6 meter NMEA 2000® Cable (optional)
- CE certified for EMI and RFI immunity
- Worldwide service
Specifications:
- Output Type: NMEA 2000
- Mounting Style: Surface
- Load Equivalence # (LEN): 5
- Backlight: No
Owner's Manual (pdf)
Brochure (pdf)
