Lenco 12" x 12" Electro-Polished Edge Mount Trim Tab Kit [15116-101]
for product information
2 Great reasons to buy from us:

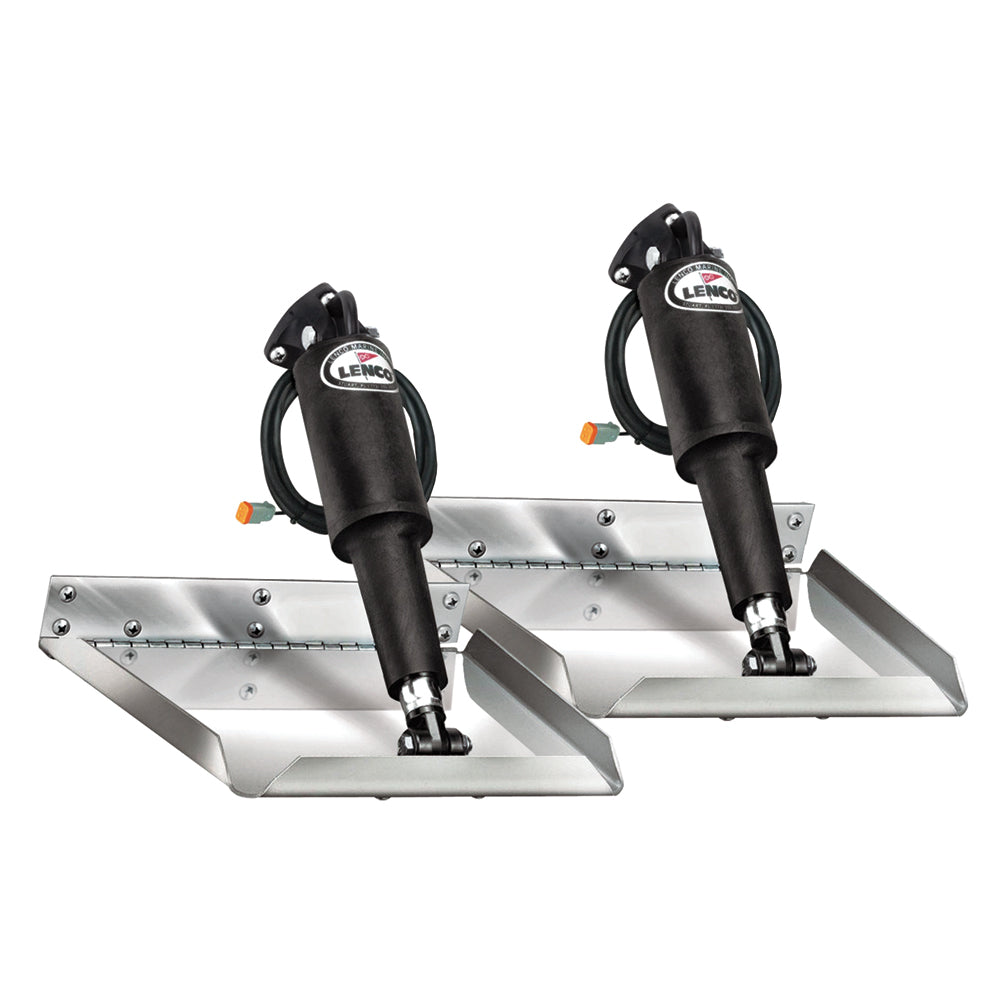

12" x 12" Electro-Polished Edge Mount Trim Tab Kit
12 Volt
Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Electro-Polished blades are constructed of 12-gauge 304 stainless steel with 1" turned up edges and an 85x inside taper and 1/8" diameter stainless steel hinge pin. The actuators mount at the trailing edge of the blades, requiring 1/2" less transom height than the standard mount tabs.
Kits include:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuator with 6' leads and Deutsch connectors
- (2) 30133-103 20' actuator extension wiring harnesses
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner's/installation manual
- Stainless steel mounting hardware
Specifications:
-
Boat Length:17' - 30'
-
L" x W":12" x 12"
-
Hinge Height:2"
- Minimun Transom Height:11"
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Construction: Stainless Steel
- Box Dimensions: 6"H x 13"W x 14"L WT: 19.6 lbs
- UPC: 874847006804
12" x 12" Electro-Polished Edge Mount Trim Tab Kit
12 Volt
Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Electro-Polished blades are constructed of 12-gauge 304 stainless steel with 1" turned up edges and an 85x inside taper and 1/8" diameter stainless steel hinge pin. The actuators mount at the trailing edge of the blades, requiring 1/2" less transom height than the standard mount tabs.
Kits include:
- (2) 12-gauge stainless steel Electro-Polished blades
- (2) 15054-001 actuator with 6' leads and Deutsch connectors
- (2) 30133-103 20' actuator extension wiring harnesses
- (2) 15085-001 upper mounting brackets with gland seal
- (2) 50014-001 lower mounting brackets
- Lenco owner's/installation manual
- Stainless steel mounting hardware
Specifications:
-
Boat Length:17' - 30'
-
L" x W":12" x 12"
-
Hinge Height:2"
- Minimun Transom Height:11"
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Construction: Stainless Steel
- Box Dimensions: 6"H x 13"W x 14"L WT: 19.6 lbs
- UPC: 874847006804
![]() |
